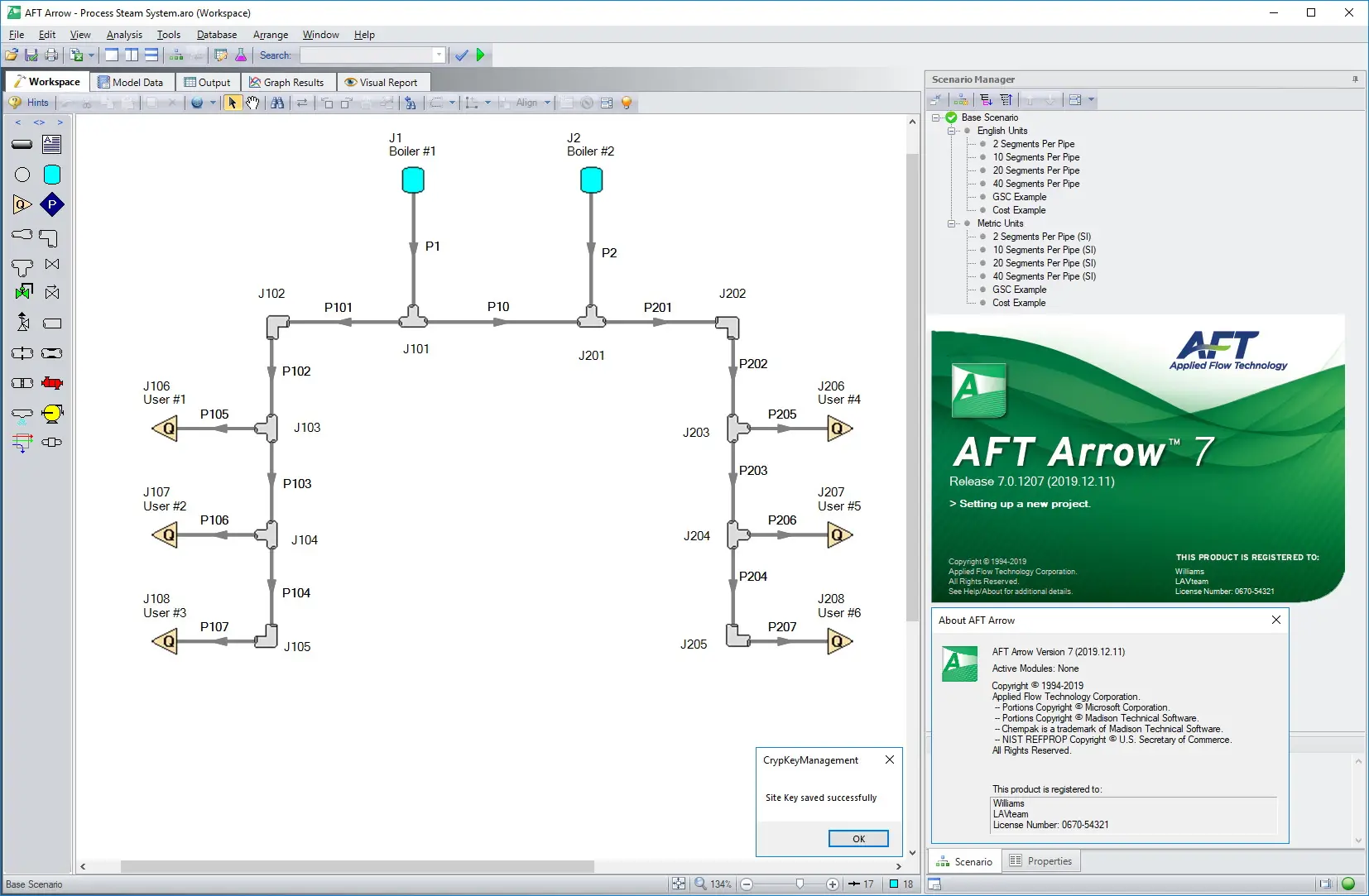

Applied Flow Technology Arrow 7.0.1207 build 2019.12.11

AFT has announced the development and new version release of their software, Arrow 7.0.1207 build 2019.12.11. It's an awesome software tool that models, simulates, and analyzes pressure calculations and flow distribution in gas piping and/or ducting systems.

A few new features you might find interesting include:

- Import piping layouts from CAESAR II® Neutral files
- Import Piping Component Files(*.pcf) from SmartPlant®, CADWorx®, AutoCAD Plant 3D, and others.
- EPANET import / export
- Enhanced Excel integration including the new Excel Export Manager
- Utilize 2D or isometric user interface
- Clearer data entry for centrifugal compressor, reciprocating compressor and fans in the Compressor/Fan Property window
- Updated Relief Valve specification with opening and closing profiles
- Enhanced heat transfer including external convection coefficient calculation, buried pipe heat transfer, and heat tracing

Click HERE to view all of the new AFT Arrow 7 features.

*** Changes for Version Date 2019.12.11 ***

>> Changes to computation logic that could impact results <<
- Resolved internal REFPROP error when using valve Cv loss.
- Improved calculation precision for Chempak with supercritical fluid near M = 1.
- Some calculations of dynamic pressure have been corrected, affecting Compressor DP when static pressure curve is entered and some PRV & PSV calculations.
>> Changes to data management that could impact results <<
- Fixed problem with the Cost Report loading which would delete the settings in Output Control when a scenario was loaded so nothing would be in the report.
>> Changes that do not impact results <<
- If a preferred unit was set as a default other than the application default, it would be overridden when the application was restarted. This was fixed.
- The Visual Report window was not displaying user-selected colors for pipes correctly the first time it was loaded. This has been fixed.
- The Excel Export was not properly exporting Cost Report data. This has been fixed.

This video introduces the new Output Reporting features in AFT’s compressible pipe flow modeling software, AFT Arrow 7. Features include isometric modeling; import ability from neutral files, .pcf files and EPANET files; NIST REFPROP fluids database; the new Excel Export Manager, and more.



AFT Arrow is a software tool used to model, simulate, and analyze any kind of super-heated gas pumped through piping or ducting systems. Among its vast compressible flow repertoire includes pipe and duct sizing, valve sizing, system optimization, and other important calculations necessary to design or analyze compressible flow systems. In addition, AFT Arrow can help engineers identify operational problems that, once corrected, enhance system reliability.

The fundamental, non-simplified equations of compressible flow from the heart of AFT Arrow, ensure its ability to accurately model a wide variety of gases from steam to compressed air to natural gas. Engineers make liberal use of Arrow’s ability to model the complex physical phenomena inherent to systems containing real gases, sonic choking, and heat transfer. Perhaps most impressive is Arrow’s ability to model highly intricate systems that can consist of complicated webs of pipe branching, all without imposing a limit on the number of pipes or system components.

It doesn’t matter if you work in a wastewater treatment plant or are working to expand a pipeline – you can use AFT Arrow to avoid catastrophes, solve sluggish flows, and protect our sensitive environment. Arrow allows engineers to design gas systems that lessen their carbon footprint and can help to ensure that pipelines are able to adequately contain destructive gases they may emit. AFT Arrow also safely prevents against dust collection explosions.

AFT Arrow - Overview


Founded in 1993, Applied Flow Technology is a leader in the pipe flow modeling software market. With a primary focus on developing high quality fluid flow analysis software, AFT has a comprehensive line of products for the analysis and design of piping and ducting systems.

Product: Applied Flow Technology Arrow
Version: 7.0.1207 build 2019.12.11
Supported Architectures: x64
Website Home Page : www.aft.com
Language: english
System Requirements: PC *
Supported Operating Systems: *
Size: 306.1 mb
