Autodesk Revit 2026.2.0 with Updated Extensions

Autodesk has released REVIT 2026.2.0 is arrives as a targeted update, delivering important productivity gains—particularly for residential designers—while raising the bar for performance, automation, and documentation across all disciplines.


Important Notes: The Revit 2026.2 Update does not support uninstall. Once Revit 2026.2 Update is applied Revit 2026 cannot be reverted to its pre-update state.

After this update is applied successfully, the build information specified on the Help > About dialog will be:

- 26.2.0.20
- 20250630_1515(x64)
- 2026.2

Enhancements

Accelerated Views
- Improved performance by an average of 10% when orbiting in 3D views with the crop region enabled.
- Added the ability to display transparency of highlighted elements in the Accelerated Graphics Tech Preview.
- Added the ability to crop views with a rectangular crop region in the Accelerated Graphics Tech Preview.
Dynamo for Revit
- Upgraded Dynamo Core version to 3.5.2. See the release notes for details.
Export PDF
- Set Export in background as the default for PDF export.
MEP Fabrication
- Changed the behavior of assemblies that contain fabrication parts to always be unique, even when they match.
Reinforcement
- Improved the behavior when editing rebar constraints to allow undo / redo steps, switching views, and modifying the properties of the edited rebar.
Text
- Supported using Ctrl + arrows to move the cursor between words and paragraphs in the text editor.

Issues Resolved

General
- Addressed potential security vulnerabilities.
Analytical EnergyModel
- Fixed an issue where the Project Phase in Energy Settings was not included when combining phases in the Phasing dialog.
Coordination Model
- Fixed an issue affecting the changed element report from the Coordination Model Changes palette after a user sign out and sign in iteration.
Dynamo for Revit
- Fixed an issue where the DynamoSettings.xml file included in the install deployment did not impact Dynamo settings as expected.
Export DWG/DXF
- Fixed an issue where hatches were exported incorrectly to CAD formats if the patterned elements were transparent in the Revit view.
Export PDF
- Improved the stability of Revit Worker when cancelling background PDF export task.
Family
- Improved stability when adding or modifying family extrusion sketch lines and modifying the Depth parameter.
Family Parameters
- Improved stability during some sweep geometry edit operations.
MEP Duct/Pipe Pressure Loss Calculations
- Fixed an issue that caused instability when saving a model that is missing a duct pressure drop calculator.
Materials
- Improved stability when transferring project standards with corrupted materials.
Project Browser
- Fixed an issue that allowed Asian languages to be input properly in the search box of the Project Browser.
- Improved stability when exporting PDF files.
Properties Dialog
- Improved stability during interaction with the Properties palette and some ribbon controls.
Revit Cloud Worksharing - Browse Projects, Folders, and Models
- Updated Revit to load upiconfig.xml from a new location (C:\Program File\Autodesk\Revit XXXX\UPI).
Structural Load Cases and Combinations
- Fixed an issue with CHS and CHT languages in Data Grid Weave component.
Units
- Fixed an issue with digit grouping in Project Units that prompts users with an invalid cell error message when editing family parameters.




Residential Content Pack: Powering residential design

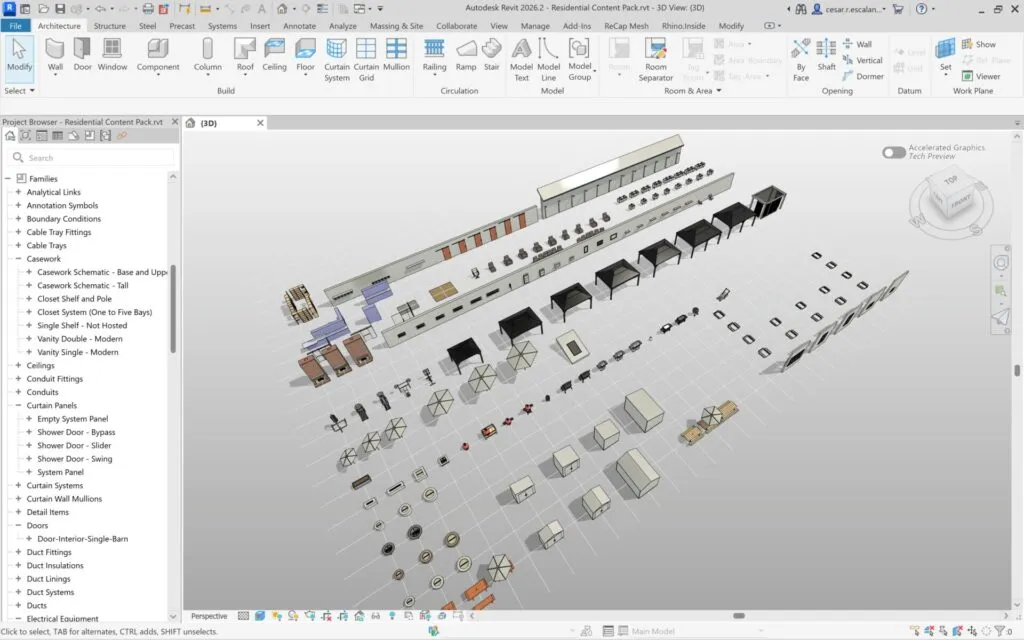

The standout feature in Revit 2026.2 is the expanded Residential Content Pack, offered to accelerate residential project workflows.

This comprehensive library delivers:
- 139 new loadable families, available both as individual files and conveniently consolidated within a single container file (RVT). The extensive range of content includes:
. Window shutters
. Barn doors
. Kitchen casework (with closets and shelving)
. Bathroom showers and vanities
. Fireplaces and fire pits
. Indoor and outdoor furniture
. Grills and planters
. EV batteries and inverters
. Exercise equipment
. Downspouts, and more
- A new System Family container file (RVT) with new definitions for Wall, Curtain Walls, Materials, Floors, Roof, Toposolids, and upgraded Stairs and Railing definitions

With this pack, residential designers can rapidly populate their models with consistent, high-quality components—reducing time spent on family creation and ensuring uniformity across projects. This translates to quicker project initiation, enhanced design iteration, and improved documentation accuracy. The Residential Content Pack is now conveniently available as an optional download through your account management page, located under the “Libraries” section in the “Revit Product Updates” section and online via the “Load Autodesk Family” dialog box. The pack is only available in English – US Imperial Units.

Accelerated views: Performance and visualization upgrades

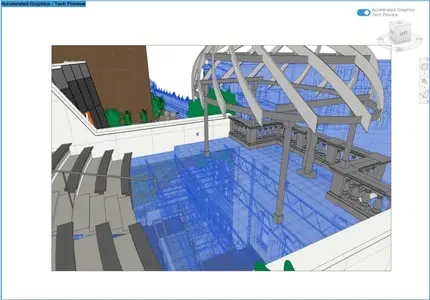

Revit 2026.2 introduces significant graphical enhancements through the Accelerated Graphics Tech Preview:

- Faster Orbiting: Smoother navigation in 3D views with crop regions enabled, making model review and design exploration more responsive.
- Transparent Highlighting: Selected elements can be displayed with transparency, enhancing clarity when working with complex assemblies.
- Rectangular Crop Regions: Support for rectangular cropped views in accelerated mode.


These improvements leverage GPU acceleration, optimizing large model handling, reducing lag, and delivering more precise visual feedback, especially valuable during design reviews and coordination.

Workflow automation and documentation enhancements
This release also brings a handful of technical upgrades to streamline automation and documentation, including:

- Dynamo Core 3.5.2: Enhanced stability and new features for visual programming, enabling more sophisticated automation and custom workflows.
- Background PDF Export: PDF exports now run in the background by default, allowing uninterrupted work and boosting productivity during documentation phases.
- Text Editor Navigation: Support for Ctrl + arrow keys to move the cursor between words and paragraphs in the text editor, enabling faster navigation for annotation and documentation tasks.
- MEP Fabrication: Assemblies with fabrication parts now behave as unique elements, even when they match, ensuring accurate scheduling and reducing errors in fabrication workflows.

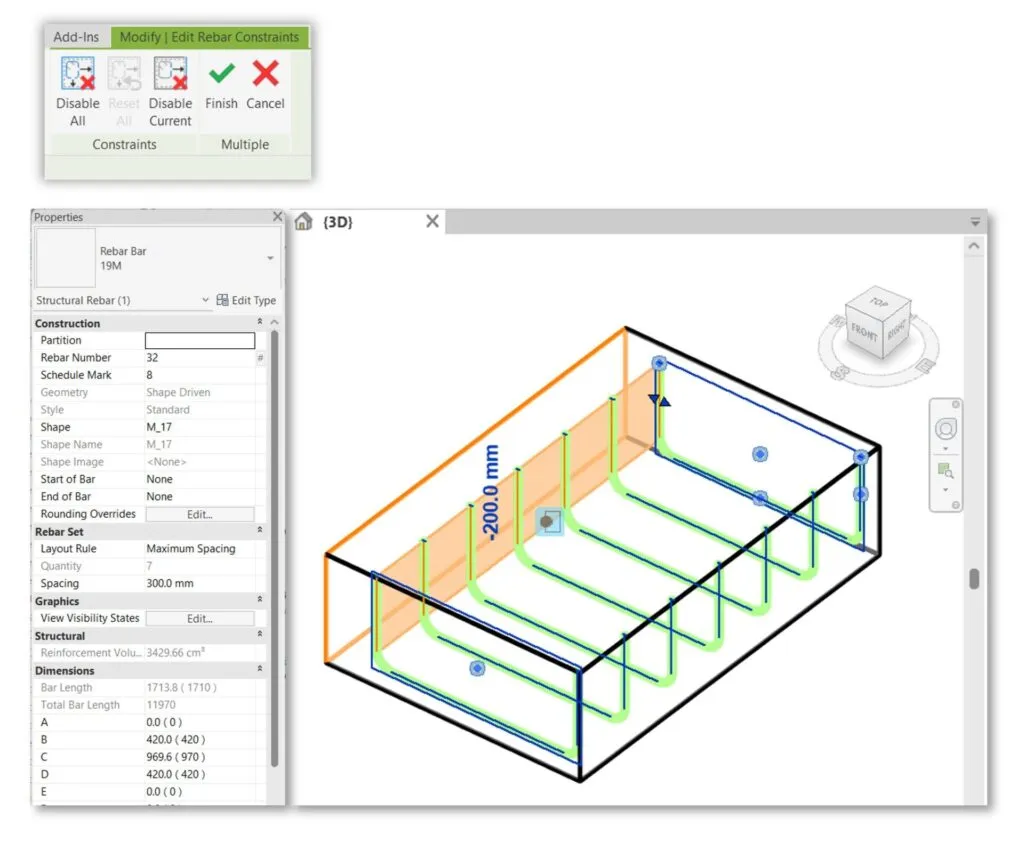

- Enhanced Rebar Constraints: Users can undo/redo constraints, switch views, apply constraints to multiple sets, and modify rebar properties while editing constraints, offering greater flexibility in structural documentation.


Autodesk Revit, Autodesk's leading Building Information Modeling (BIM) solution, supports multi-discipline teams throughout the project lifecycle. Available individually or as part of the Autodesk architecture, engineering, and construction industry collection, Autodesk Revit features industry-specific tools for architectural design, mechanical, electrical, and plumbing (MEP), structural engineering, and construction.

Revit 2026 - What's New? | Revit 2026 New Features Tutorial


Autodesk helps people imagine, design and create a better world. Everyone—from design professionals, engineers and architects to digital artists, students and hobbyists—uses Autodesk software to unlock their creativity and solve important challenges.

Owner: Autodesk
Product Name: REVIT
Version: 2026.2.0 with Updated Extensions *
Supported Architectures: x64
Website Home Page : www.autodesk.com
Languages Supported: multilanguage *

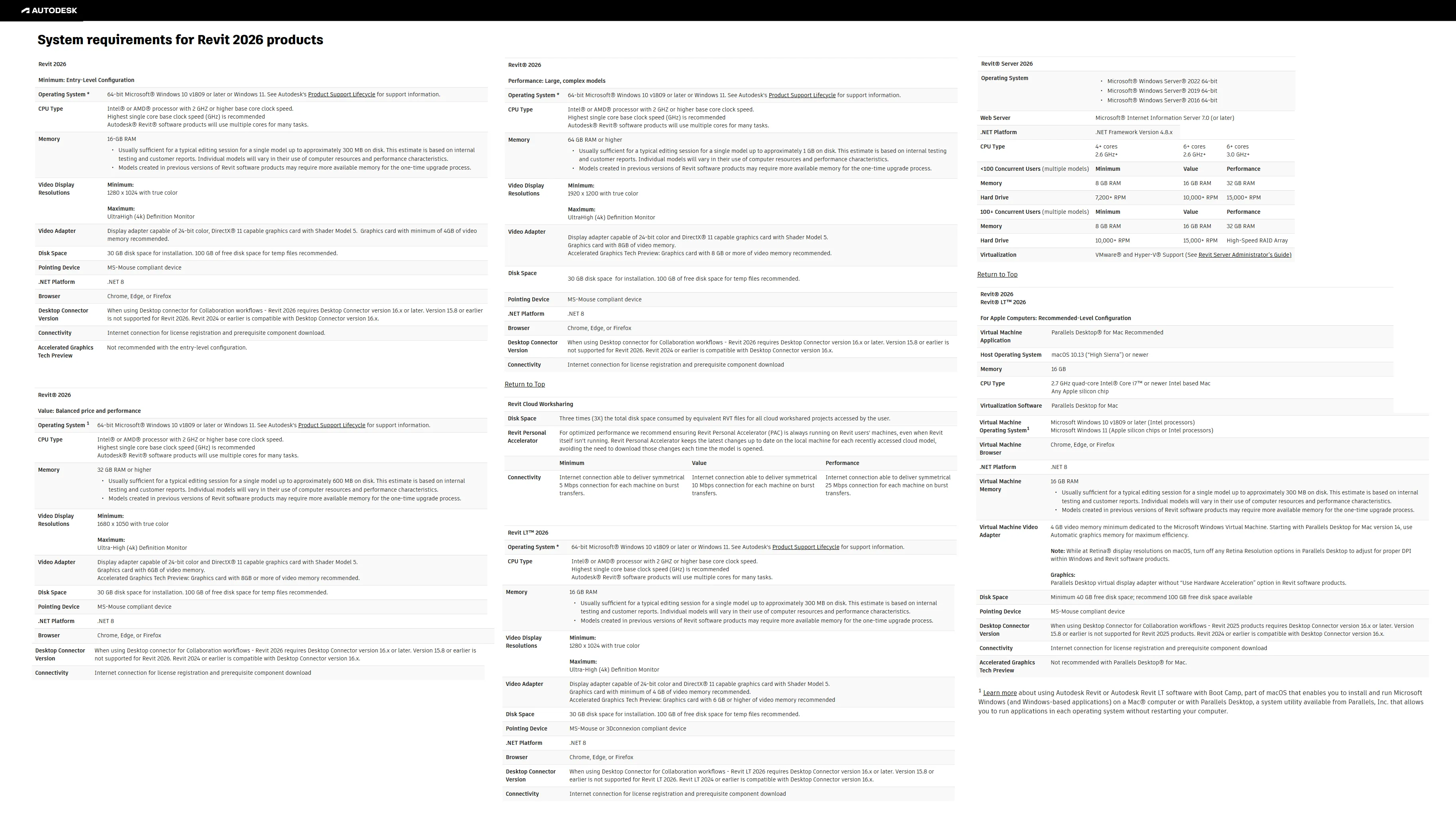

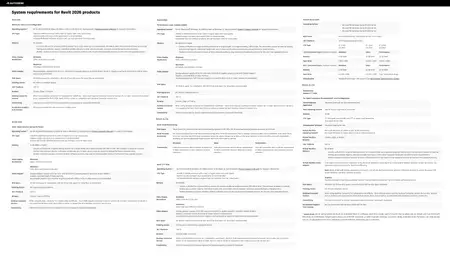

System Requirements: Windows **
Software Prerequisites: pre-installed Autodesk REVIT 2026.0 and above
Size: 5.7 Gb

* NOTE: For each of the supported languages, the Revit software contains translations for the user interface. Revit does not use language packs. Instead, the base language for the software is determined as follows:
- When installing Revit on a single computer: The language (and locale) for the software is based on the computer's regional settings specified for the operating system.
- When creating a Custom Install: The language (and locale) for the deployment image is based on the regional settings specified for the operating system of the computer used to create the deployment.
Languages for Revit content
In a default Revit installation essential language content packs for the 14 supported languages in Revit will be installed. Essential language content is option within Custom Install workflows.
