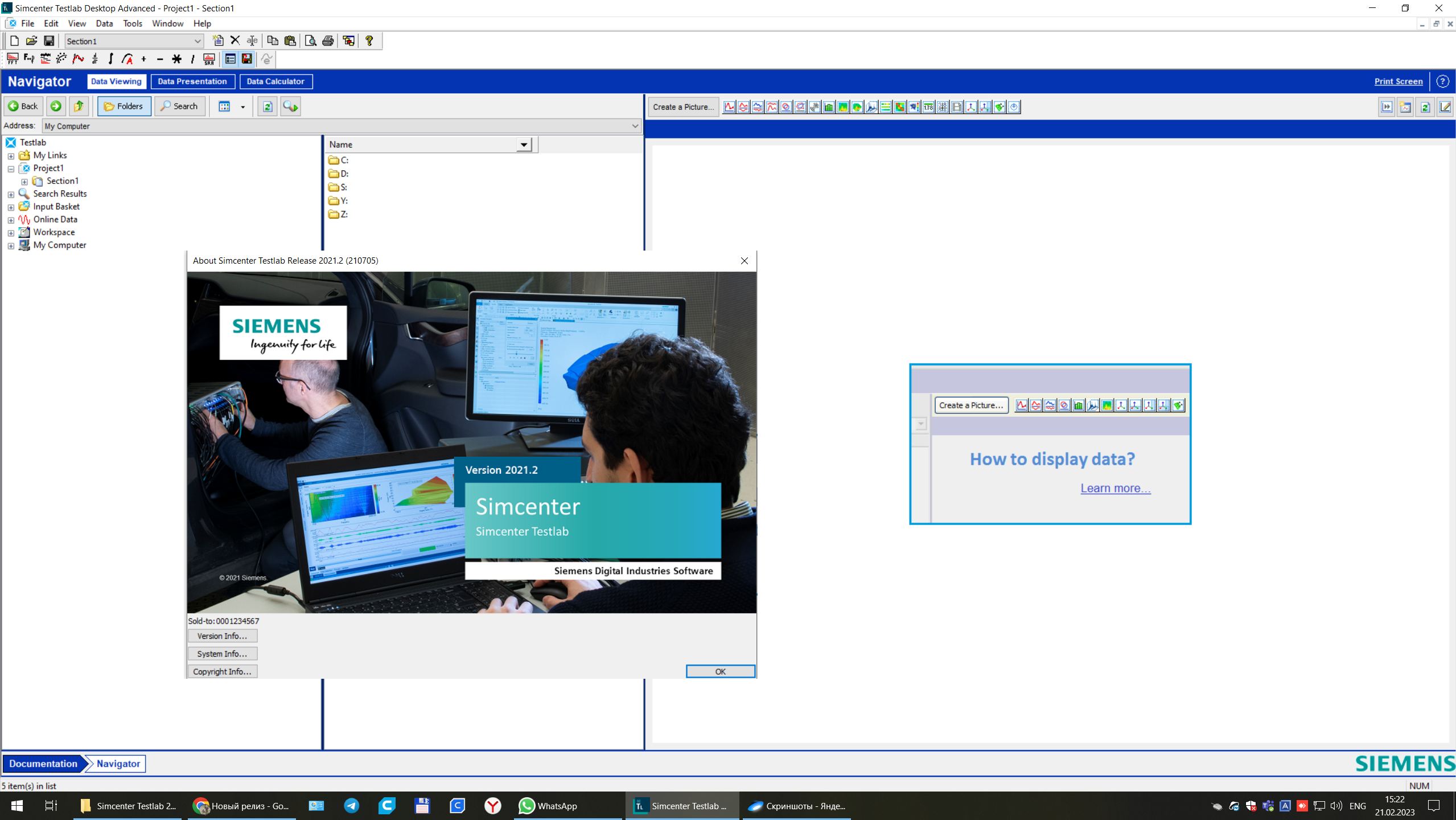

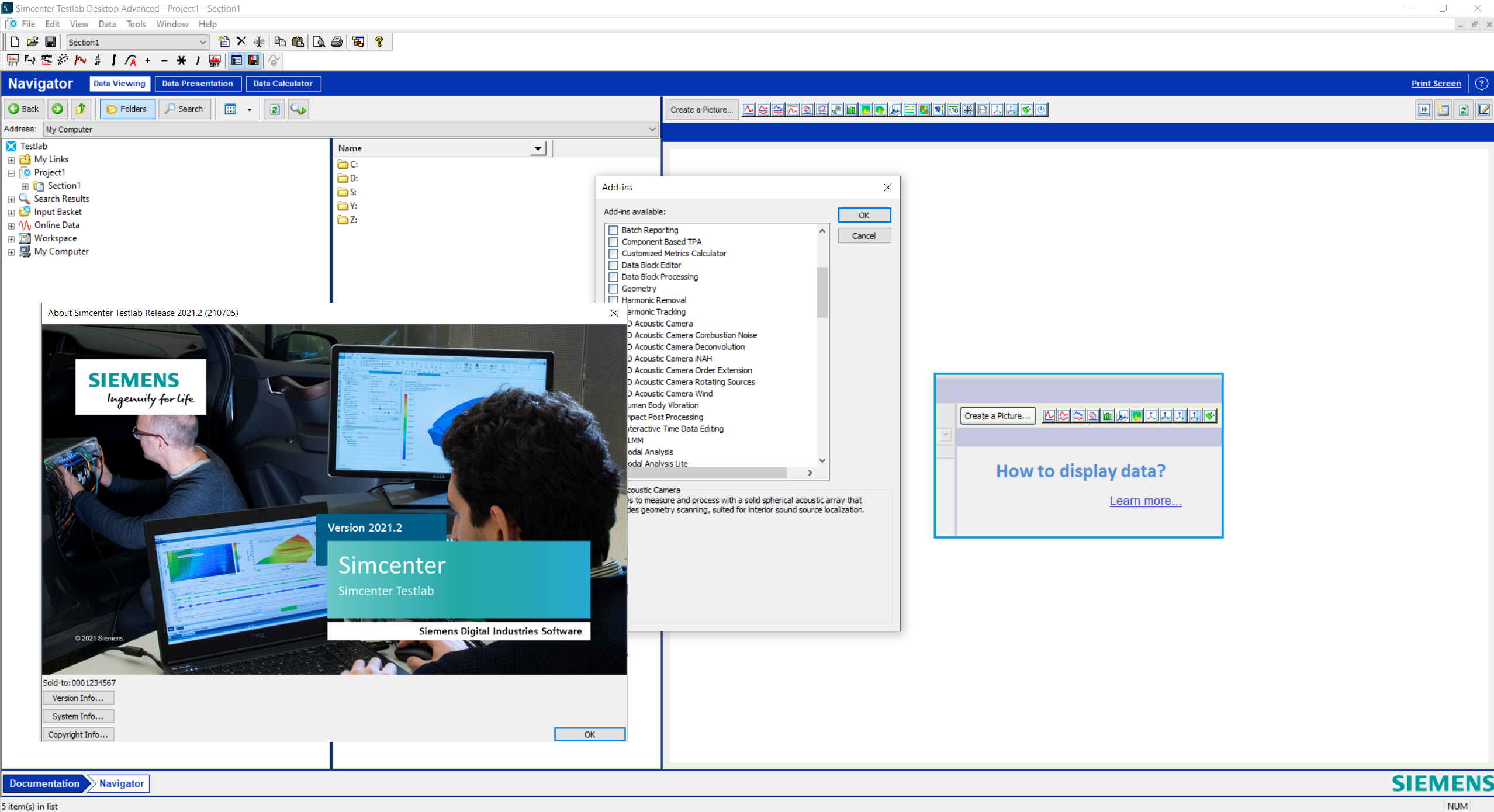

Siemens Simcenter Testlab 2021.2.0

System NVH prediction with Virtual Prototype Assembly

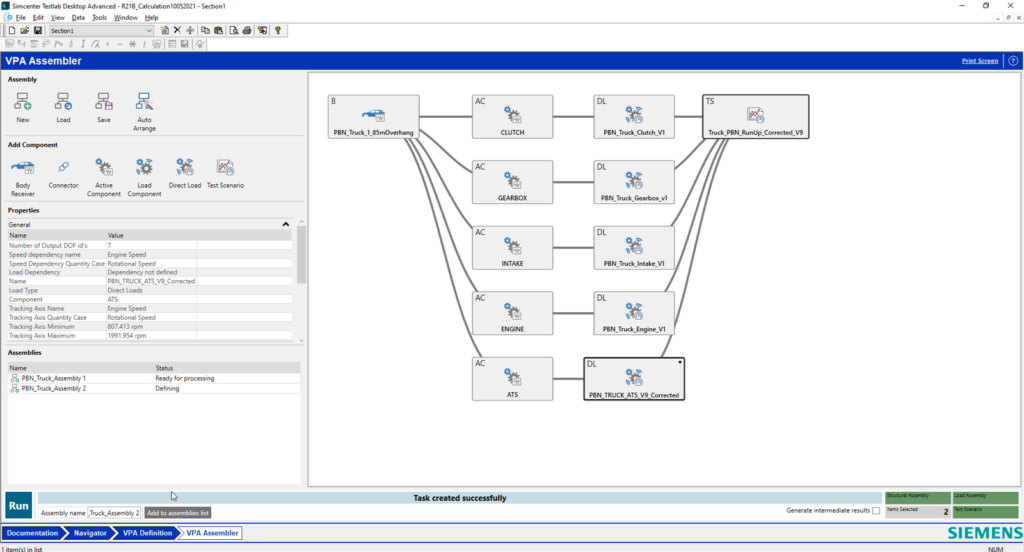

This Simcenter Testlab release allows systems NVH prediction at every stage of the development cycle. With the new Simcenter Testlab Virtual Prototype Assembly, engineers can create system variants in a virtual environment. Component models coming from test and/or simulation are assembled in a modular way, enabling the NVH performance assessment of the system before having a physical prototype available. In this way, the impact of structural modifications, the difference in performance between several variants and more, can be evaluated as early as possible, reducing troubleshooting time. The key technology to create accurate components is component-based Transfer Path Analysis (TPA). This allows you to characterize the NVH sources independently from the final receiver. Test and simulation experts can create each component model and then publish them for analysts for further evaluation. This allows engineers to easily swap in assembly or design alternatives and immediately see the NVH impact before having the system physically available. Virtual Prototype Assembly creates the perfect marriage between technology and usability, bringing test and simulation models in one working space. It allows manufacturers to deliver excellent NVH performance while keeping development time and cost under control.


Advanced operational NVH testing with Simcenter Testlab Neo

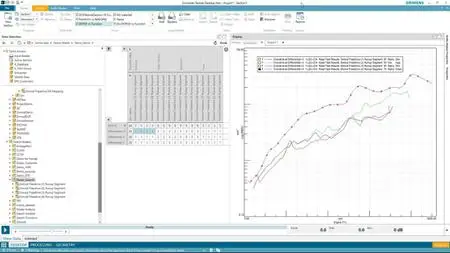

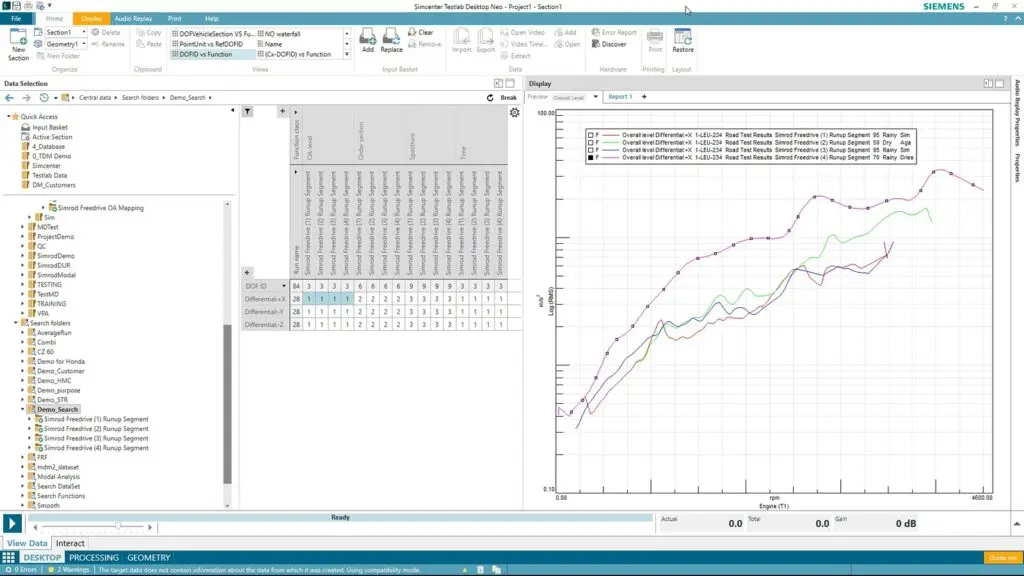

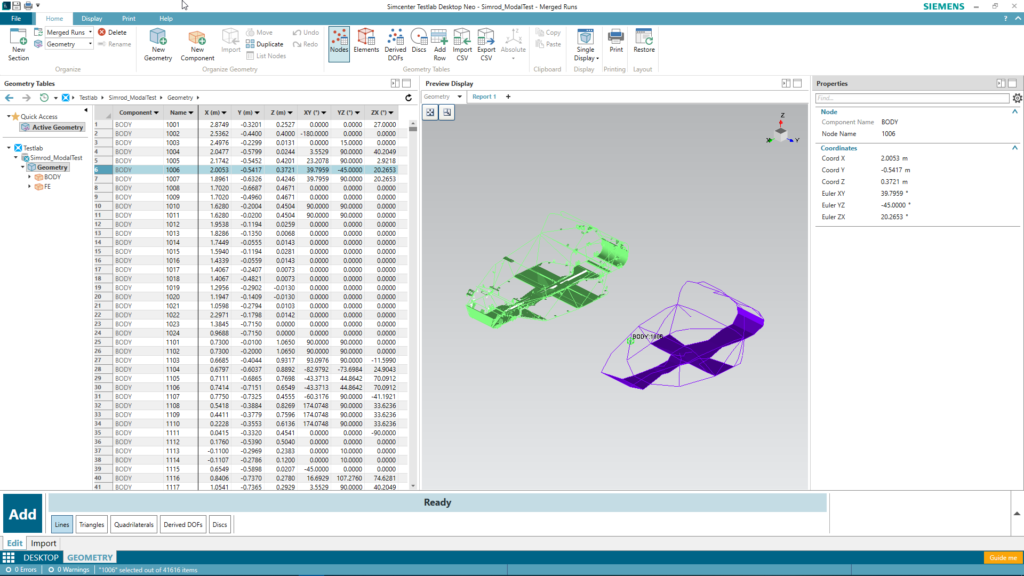

Simcenter Testlab Neo comes with new enhancements for increased efficiency when evaluating NVH performance. As a Simcenter Testlab Neo 2021.2 Process Designer user, you can now filter and select only the data or segments recorded under specific operating conditions. And that’s not all! With Simcenter Testlab Neo 2021.2 Process Designer, you can even set up selection automation based on the defined operating conditions. And as the next step, you can use it in procession sequence Simcenter Testlab Process Designer. Next to this, Simcenter Testlab 2021.2 comes with new enhancements for advanced audio reproduction and sound quality analysis. Simcenter Testlab Neo additionally offers new features for managing multiple geometries in one project. Now you can import Finite Element or STL files, merge them with existing geometries and digitally create a 3D representation of a tested system.


Simplified and more effective collaboration, comparison and reporting
Simcenter Testlab Data Management allows quick and easy comparison of measurement, analysis and simulation results of multiple test items across different test sites. It is a truly powerful tool for making the most of the data organization, visualization and reporting capabilities of Simcenter Testlab. For publishing and searching data, Simcenter Testlab Data Management interacts with Peak’s ODS server software, which supports the latest ASAM standards and databases. The great enhancement of this release is also that the new Simcenter Testlab Data Management solution for standardized central data management allows teams from different departments to publish consistent datasets, search for contextual information, and reuse the data for further analysis and reporting. Consequently, your colleagues can now access your data in a more structured way.


Productive testing in harsh and demanding conditions

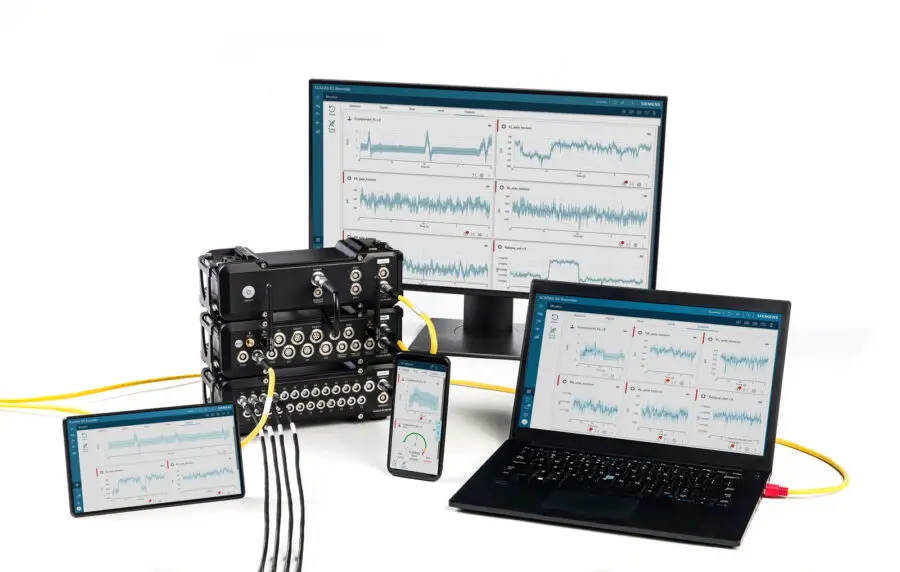

Simcenter SCADAS RS is the latest member of our Simcenter SCADAS data acquisition hardware, introduced this year. Test engineers are challenged by testing reliably under demanding conditions. Off-highway vehicle development often involves testing under extreme temperatures, humidity, mud, dust and vibration. This is where the new version of Simcenter Testlab 2021.2 comes into play. The brand new Simcenter SCADAS RS rugged data acquisition system is designed for fast and cost-effective data acquisition in harsh environments on agricultural, construction and mining equipment. To get the most out of Simcenter SCADAS RS, Simcenter Testlab 2021.2 enables test preparation, test setup definition, data acquisition and validation.
