Software Cradle is proud to announce the release of scSTREAM and HeatDesigner Version 2020, a part of the comprehensive suite of virtual product development from MSC Software.
Large-Scale Analysis Capability
Speed-up of drawing involving large element division
The display speed of the element division in a large scale analysis of approximately 1 billion elements has increased up to 10 times that of the previous version. A video card supporting OpenGL 4.0 or later is required.
Optimization of cluster node
The distribution of memory consumption on a node-by-node basis has been optimized when computing with a cluster machine. High-speed calculation can be expected in simulations experiencing memory swap issues. Analysis with more number of elements can be performed in your current environment.
FLD file output by single precision
The size of the FLD file can be reduced to approximately 2/3 of that of the previous file output. This resolved the issue of when saving or transferring a large FLD file from large-scale simulations.
Enhanced Multi-phase Function
DEM(Discrete Element Method)

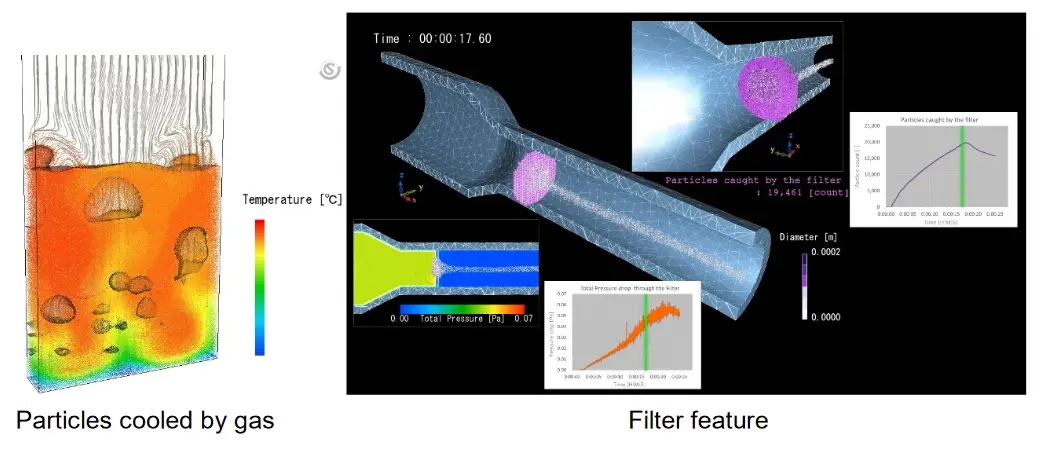

Heat transfer between particles and between particles and fluid can be calculated. Flow at a clogged filter can be considered.
![Cradle scSTREAM with HeatDesigner 2020 Patch 6]()
Enhanced Multi-physics Function
Automatic Generation of Thermal Model for 1D-CAE

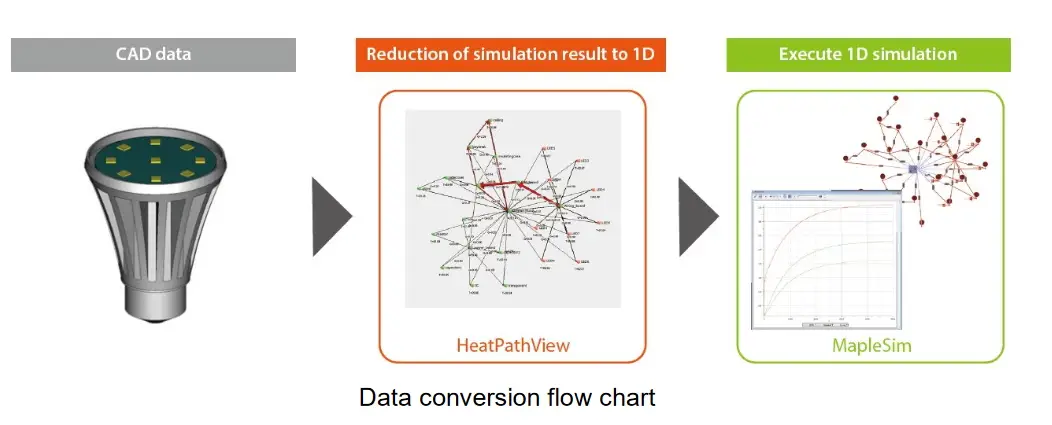

Heat path information generated by HeatPathView can be inherited to MapleSim. By using this function, itis possible to construct 1D-CAE model from 3D-CAD data and use it as multi domain heat transfer node.
![Cradle scSTREAM with HeatDesigner 2020 Patch 6]()
New Feature of Postprocessor
Parts Object

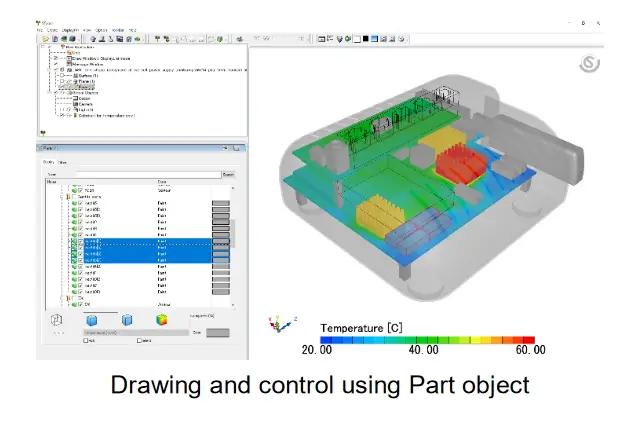

Parts display and control similar to that in Preprocessor can be done in Postprocessor. This is effective when parts need to be control by inheriting the assembly structure or whenvisualappearance is most required.
![Cradle scSTREAM with HeatDesigner 2020 Patch 6]()
New Features Dedicated to Electronics Field
Support for ECXML format
Thermal compact models made by semiconductor manufactures and data of other CFD tools can be imported. ECXML is an open file format that does not depend on a specific CFD tool and its capability is to be enhanced by JEDEC subcommittee.
Conversion into structure function

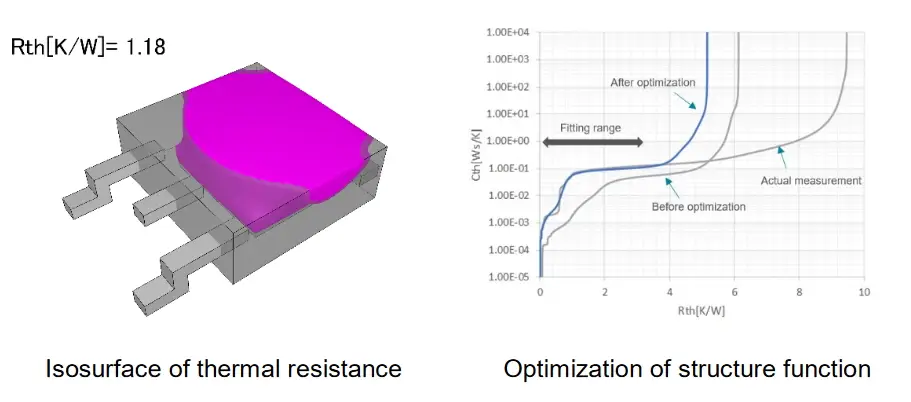

The simulation result can be converted to a structure function standardized by JEDEC standard (JESD51-14). A highly accurate thermal compact model can be created by fitting simulation results and the actual value of the semiconductor package.
![Cradle scSTREAM with HeatDesigner 2020 Patch 6]()
New Features Dedicated to Architecture Field
Solar radiation absorptance considering the angle of incident

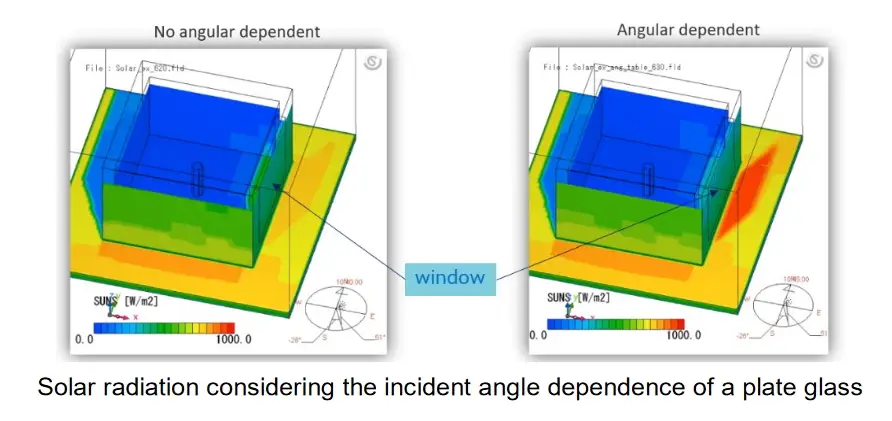

The incident angle dependent solar radiation can be considered. Postprocessor will reproduce so that the amount of solar radiation that passes through the window will be small when the incident angle is large, and vice versa.
![Cradle scSTREAM with HeatDesigner 2020 Patch 6]()
Speed-up of drawing involving large element division
The display speed of the element division in a large scale analysis of approximately 1 billion elements has increased up to 10 times that of the previous version. A video card supporting OpenGL 4.0 or later is required.
Optimization of cluster node
The distribution of memory consumption on a node-by-node basis has been optimized when computing with a cluster machine. High-speed calculation can be expected in simulations experiencing memory swap issues. Analysis with more number of elements can be performed in your current environment.
FLD file output by single precision
The size of the FLD file can be reduced to approximately 2/3 of that of the previous file output. This resolved the issue of when saving or transferring a large FLD file from large-scale simulations.
Enhanced Multi-phase Function
DEM(Discrete Element Method)
Heat transfer between particles and between particles and fluid can be calculated. Flow at a clogged filter can be considered.
Cradle scSTREAM with HeatDesigner 2020 Patch 6
Enhanced Multi-physics Function
Automatic Generation of Thermal Model for 1D-CAE
Heat path information generated by HeatPathView can be inherited to MapleSim. By using this function, itis possible to construct 1D-CAE model from 3D-CAD data and use it as multi domain heat transfer node.
Cradle scSTREAM with HeatDesigner 2020 Patch 6
New Feature of Postprocessor
Parts Object
Parts display and control similar to that in Preprocessor can be done in Postprocessor. This is effective when parts need to be control by inheriting the assembly structure or whenvisualappearance is most required.
Cradle scSTREAM with HeatDesigner 2020 Patch 6
New Features Dedicated to Electronics Field
Support for ECXML format
Thermal compact models made by semiconductor manufactures and data of other CFD tools can be imported. ECXML is an open file format that does not depend on a specific CFD tool and its capability is to be enhanced by JEDEC subcommittee.
Conversion into structure function
The simulation result can be converted to a structure function standardized by JEDEC standard (JESD51-14). A highly accurate thermal compact model can be created by fitting simulation results and the actual value of the semiconductor package.
Cradle scSTREAM with HeatDesigner 2020 Patch 6
New Features Dedicated to Architecture Field
Solar radiation absorptance considering the angle of incident
The incident angle dependent solar radiation can be considered. Postprocessor will reproduce so that the amount of solar radiation that passes through the window will be small when the incident angle is large, and vice versa.
Cradle scSTREAM with HeatDesigner 2020 Patch 6
scSTREAM is a general-purpose CFD tool that uses Cartesian or cylindrical structured mesh to enable easy mesh generation and high-speed simulations to be performed in a fraction of the time. Due to the meshing nature and analysis system that enables large-scale calculation, scSTREAM works best at processing extensive simulations, where users are required to solve thermal problems of electronic devices and indoor environment, wind flow, and heat island phenomena.
scSTREAM thermo-fluid software has serviced the electronics and architectural industries for thirty years. The ever-evolving software is characterized by its overwhelmingly user-friendly interfaces and high speed processing.
Spread of Virus in a Classroom - scSTREAM
HeatDesigner is a structured (Cartesian) mesh thermal fluid analysis software specially designed for electronics cooling thermal analysis. It uses core technology from Software Cradle's scSTREAM general purpose structured mesh thermal-fluid software product.
HeatDesigner's performance is optimized for applications that do not require precise reproduction of fine geometrical curvature to predict an accurate flow field. However, HeatDesigner is capable of accommodating meshes with over a hundred million elements enabling it to capture fine geometrical details. Like scSTREAM, the major advantages of HeatDesigner are fast calculations times and low memory consumption.
MSC Software Cradle Computational Fluid Dynamics (CFD) Solutions
Software Cradle Co., Ltd. part of Hexagon’s Manufacturing Intelligence division, is an innovative provider of computational fluid dynamics (CFD) simulation software. Established in 1984, the company has pursued to offer unique, innovation focused, and highly reliable CFD solutions that enhance customers’ product quality and creativity. In 2016, the company joined MSC Software Corporation, the worldwide leader in the field of multidiscipline simulation. As a truly global company, Software Cradle delivers all-inclusive multi-physics solutions.
Product: Cradle scSTREAM
Version: 2020 Patch 6 with HeatDesigner
Supported Architectures: x64
Website Home Page : www.cradle-cfd.com
Language: english
System Requirements: PC *
Supported Operating Systems: *
Size: 1.2 Gb
