ProStructures CONNECT Edition Update 5.1

This is a refresh release and contains important fixes and enhancements.

- For ProStructures CONNECT Edition Update 5.1 configuration refer to ProStructures CONNECT Edition Update 2 Configuration Setup Guide, the Setup for ProStructures CONNECT Edition Update 3,4 and 5 are done identical.

ProjectWise
- ProStructures CONNECT Edition Update 5.1 is compatible with ProjectWise CONNECT Edition Update 3.1 (10.00.03.140), Update 3.1 Refresh (10.00.03.167), Update 3.2 (10.00.03.262), Update 3.3 (10.00.03.280), Update 3.3 (10.00.03.334), Update 3.3 (10.00.03.434)
- For complete compatibility metrics for design, modeling products see ProjectWise Version Support Matrix
Structural Synchronizer
- ProStructures CONNECT Edition Update 5.1 is compatible with Structural Synchronizer CONNECT Edition V11 (11.00.03.04) & V11 Update1 (11.01.02.09).DgnDB iModel Importer
- Please Note: The Structural Synchronizer version 11.01.01.04 is not supported.

- ProStructures CONNECT Edition Update 5.1 is compatible with iModel publishing 1.6
- ProStructures CONNECT Edition Update 5.1 is compatible with iModel publishing 2.0

Enhancements
1113217 Shape 26 for Rebar Shape BS 8666:2005, Leg A and (C) are now always following the rule
1107747 New Keyin for Reassign a new concrete owner for existing rebar is available
1071855 BS8666:2005_Shape Code 99 is now scheduling when the Shapes Rule deviates from Standard shapes
1107279 The Multiple Select mode is offered for Rebar Modification tools
1055964 Rebar Shapes of Shape Code BS8666:2005 are following the rule mentioned in the code
1060006 Bar Mark Macro is retaining the last saved settings
1112597 Length of rebar in callout is now always matching the length from Positioning results
Resolved Issues
1108181 BarName is not re-appended anymore with "Bar Grade" and "Bar Coating" in Element Information dialog box.
1108518 Irregular Dispatch does not lead ProStructures to crash when the associated line string is modified
1109894 Single Rebar is now getting back to default color when using rebar modification tools on it
1109906 Multiple selection_Single rebar- Edit rebar modification tool is now working on multiple selection with Single rebar
1109914 Edit Rebar - Mixed Selection of rebars from various rebarset is now working for Rebar modification tools with Multi-selection
1110351 Schedule generator-Default text style can be set as ProConcrete2
1110633 Multiple Selection with Edit rebar is now working on different RebarSets of same assembly
1110905 Levels and Colors of RebarElement which was customized are not reverting back anymore up on modifications
1111516 Single rebar - Bar Weight Property is now listed in Ms_Properties
1111946 By points -Rebar modification tools like Trim, Extend, break are now working with by points option
1112321 2D Rebar disappears when switching between drawing and design model using marker, back and forward buttons
930223 Frames (Symmetric, Vertical & trestle) are now being copied or rotated by object work frame, copy is working
1041716 Irregular Dispatch - works while placing in a semi-circular solid with higher rebar size
1104245 Convert End Condition to Bend Bar Tool works now all times
1106850 H & K dimensions of Rebar shape 99 based on shape 29 is now in accordance of BS 8666:2005 shape code
1067148 Dimensions of cranked bars now always in accordance to Rebar Codes
1107576 No crashing when model is switched between 3d model and drawing by Section callout's icon
1112895 Column Circular Ties now always upgrading properly when opened in CONNECT Edition

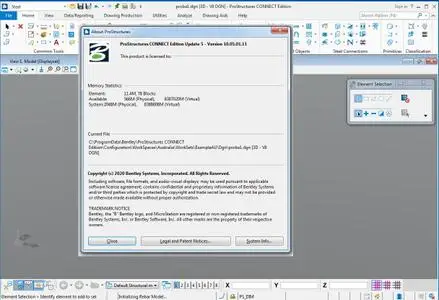

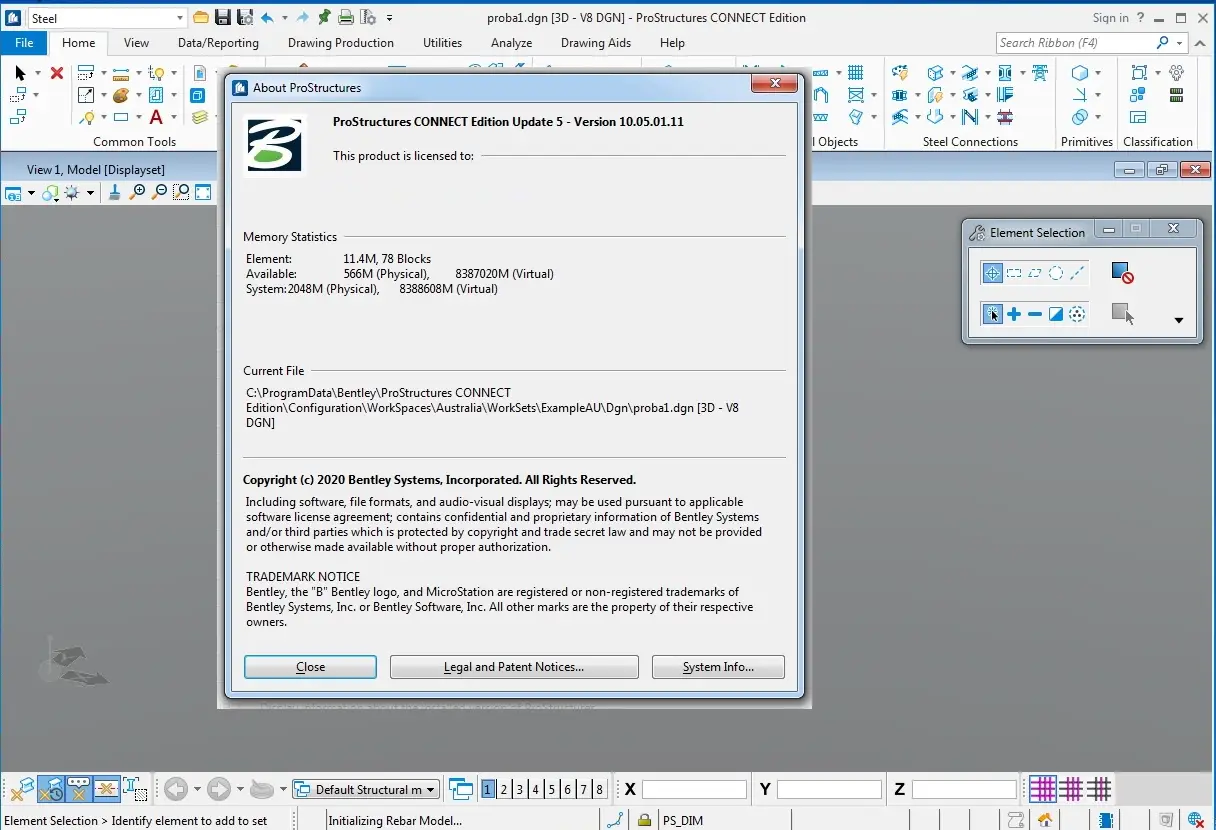

ProStructures CONNECT Edition Update 5.1 (build 10.05.01.11)

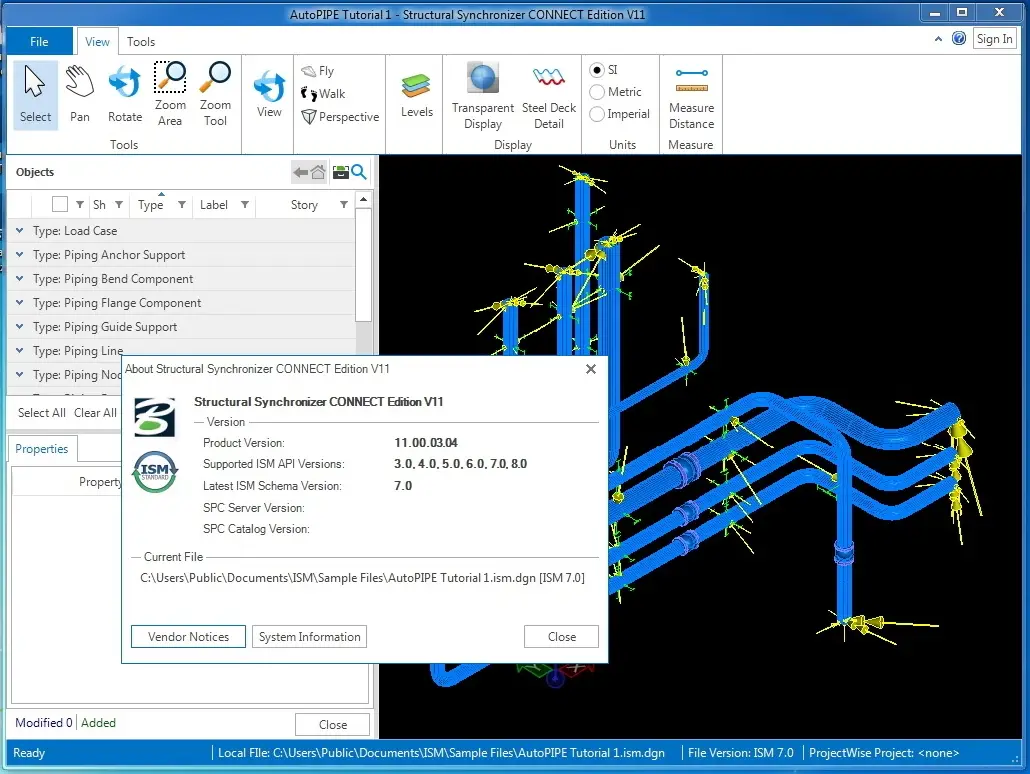

Structural Synchronizer CONNECT Edition 11.00.03.04

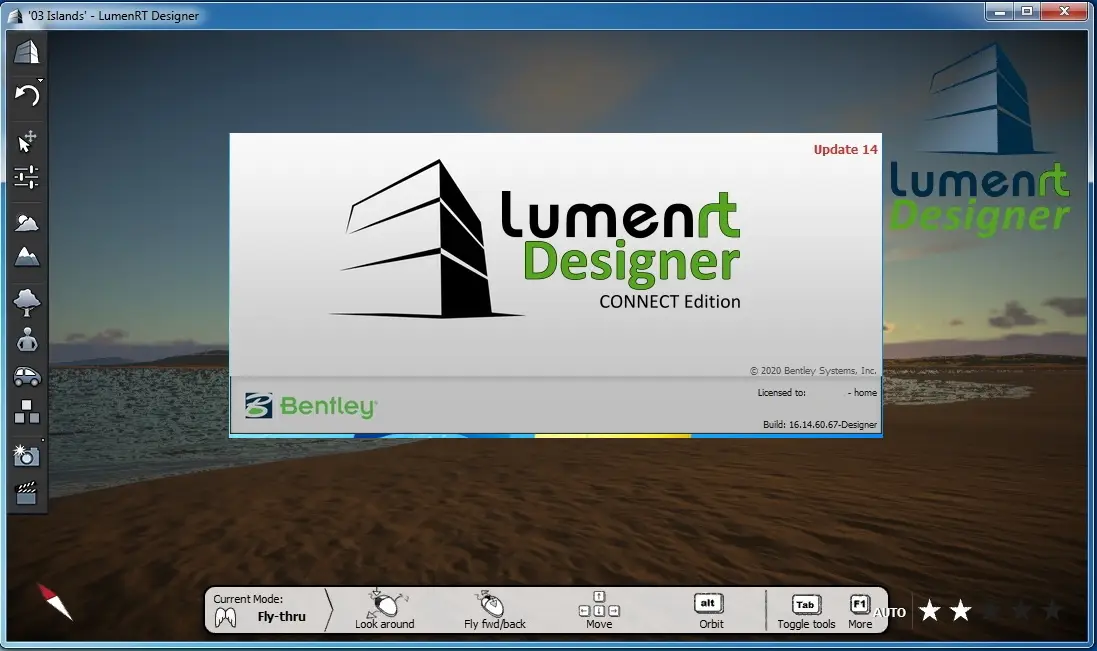

LumenRT Designer 16.14.60.67_28882

Bentley LumenRT Content Objects 16.14.60.86
Bentley LumenRT Content People 16.14.60.86
Bentley LumenRT Content Plants 16.14.60.77

Installation Requirements
A CD drive or access to the Internet is required for product installation. The minimum system configuration for installation is:

Supported Operating Systems
- Windows 10 (64-bit) - Home, Pro, Enterprise, and Education
- Windows 8.1 (64-bit) - Standard, Pro, and Enterprise
- Windows 8 (64-bit) - Standard, Pro, and Enterprise
- Windows 7 SP1 (64-bit) - Home Basic, Home Premium, Professional, Enterprise, and Ultimate

Note: You must have the following Microsoft updates installed on your machine:

- KB2999226 - For Windows 7 SP1, Windows 8.1, Windows Server 2008 R2 SP1, and Windows Server 2012
- KB2919355 - For Windows 8.1 and Windows Server 2012

Note: Windows 7 operating system is supported only if you have its service pack (SP1) or later installed

Minimum Profile
The minimum recommended workstation profile for running ProStructures CONNECT Edition is:

Processor: Intel or AMD processor 1.0 GHz or greater. ProStructures is not supported on a CPU that does not support SSE2.
Memory: 16 GB minimum, 32 GB recommended. More memory almost always improves performance, particularly when working with larger models.
Hard Disk: 20 GB free disk space (which includes the 12 GB install footprint for a complete installation)
Video: See the graphics card manufacturer for latest information on DirectX drivers. 1 GB of video RAM or higher is recommended. If insufficient video RAM or no graphics card supported by DirectX can be found, ProStructures attempts to use software emulation. For optimal performance, graphics display color depth should be set to 24-bit or higher. When using a color depth setting of 16-bit, some inconsistencies will be noted.
Screen Resolution: 1024 x 768 or higher.
