AutoCAD 2009: 2D Drafting Techniques

Posted By: Landau17
AutoCAD 2009: 2D Drafting Techniques

AutoCAD 2009: 2D Drafting Techniques
MP4 | Video: 540p | Duration: 3:36:31 | English | Subtitles: VTT | 416.9 MB

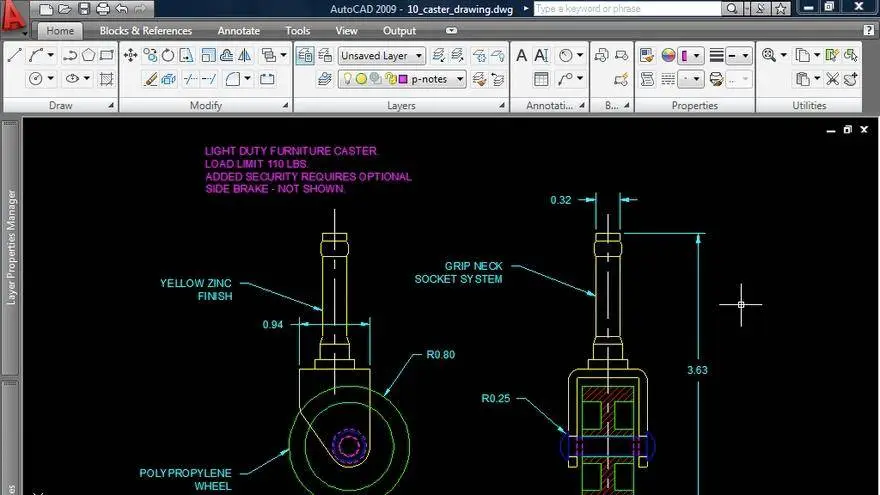

With a host of new capabilities, AutoCAD 2009 remains the industry standard for 2D drafting. Jeff Bartels draws on his experience as a professional drafter and takes an in–depth look at the AutoCAD features used to communicate design. AutoCAD 2009: 2D Drafting Techniques is intended to be an “industry neutral” course, so the lessons can be applied to any discipline. Starting with synchronizing the AutoCAD workspace and settings, Jeff explores the creation and modification tools, focusing on several sub–options for each command. He discusses utilities such as Draw Order, Groups, and the Geometric Calculator, and demonstrates tools for making powerful selections and managing layers. Exercise files accompany the course.

Topics include:
  • Creating boundaries and calculating areas
  • Producing gradient fill hatch
  • Matching properties
  • Dividing and measuring line work
  • Finding parallels and extensions
  • Making selections based on criteria
  • Filtering layers
  • Applying new skills using practical examples
