    AutoCAD: Working with Dimensions

    Posted By: Landau17
    Date: 21 Oct 2017 04:08:54
    AutoCAD: Working with Dimensions

    AutoCAD: Working with Dimensions
    MP4 | Video: 720p | Duration: 1:04:59 | English | Subtitles: VTT | 270.8 MB

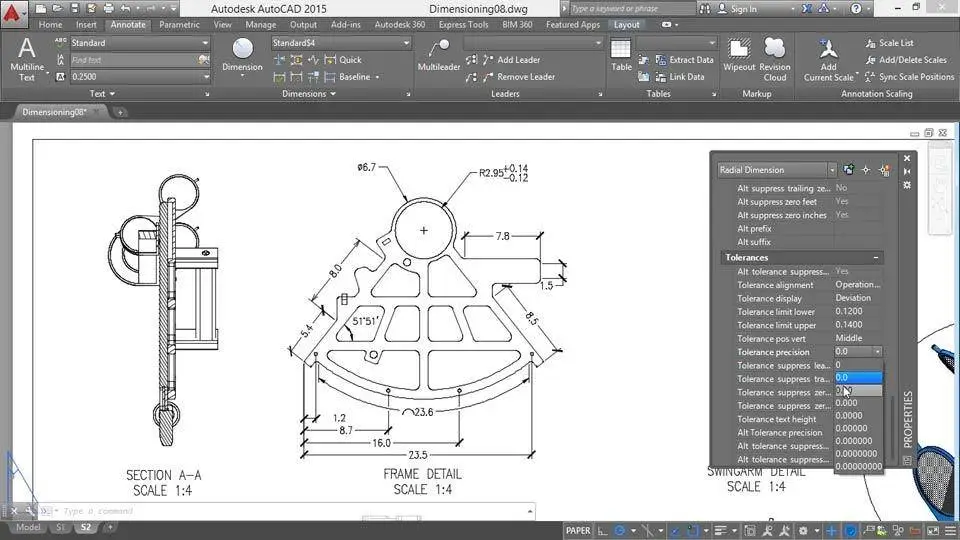

    For designs to be precisely built and manufactured, technical drawings need to show dimensions indicating measured lengths and angles, and in some cases geometric tolerances must be specified. In this AutoCAD training course, author Scott Onstott shows you how to create linear, aligned, angular, radial, diameter, continued, baseline, ordinate, and tolerance dimensions so you can precisely annotate any design. Plus, learn how to edit dimension styles, create sub-styles, temporarily override styles, control dimensional associativity, fine-tune dimension text, label features with multileaders, and much more.

    Topics include:
    • Creating different styles of dimensions: linear, baseline, etc.
    • Editing dimension styles
    • Specifying tolerance
    • Re-associating dimensions
    • Editing dimensions text
    • Labeling with multileaders
