Autodesk Inventor: Product Design Workflow

Posted By: Landau17
Autodesk Inventor: Product Design Workflow

Autodesk Inventor: Product Design Workflow
MP4 | Video: 720p | Duration: 1:42:02 | English | Subtitles: VTT | 389.2 MB

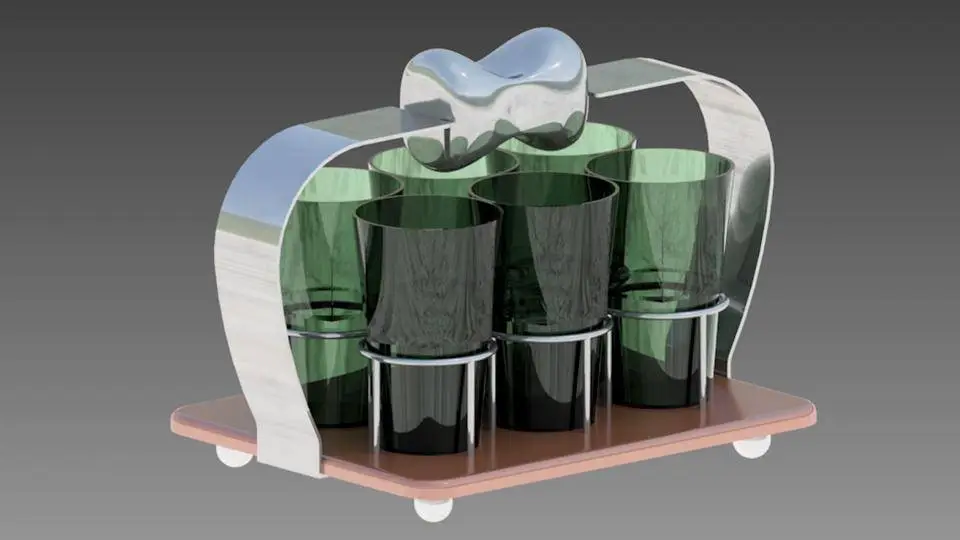

So you've completed the Inventor Essential Training. Now you're looking for a challenging project to lock in your new skills. This course is for you: a retro product design project for a vintage beverage caddy. Jana Schmidt walks through a typical product design workflow in Inventor—sketching, modeling parts, building assemblies, and producing final drawings—all in the context of an eye-catching design.

Jana reviews techniques such as setting up your project file; creating and modifying geometry; creating extrusions, sweeps, and lofts; and working with Inventor's freeform tools. She also shows how to combine your parts in an assembly, create presentation-quality animations and still renders of the design, and document the product design with working 2D drawings.

Topics include:
  • Modeling the caddy base with the Extrude and Hole commands
  • Modeling a caddy foot with Revolve
  • Modeling ring supports using the Pattern command
  • Placing and constraining the model parts in a caddy assembly
  • Adjusting materials and appearance
  • Adding a handle with the freeform tools
  • Creating an exploded view, a technical drawing, and an animation
